Anti-Reflective Coating
Anti-reflective coatings can reduce the intensity of reflected light, thereby increasing the intensity of transmitted light, making the imaging of optical systems clearer.

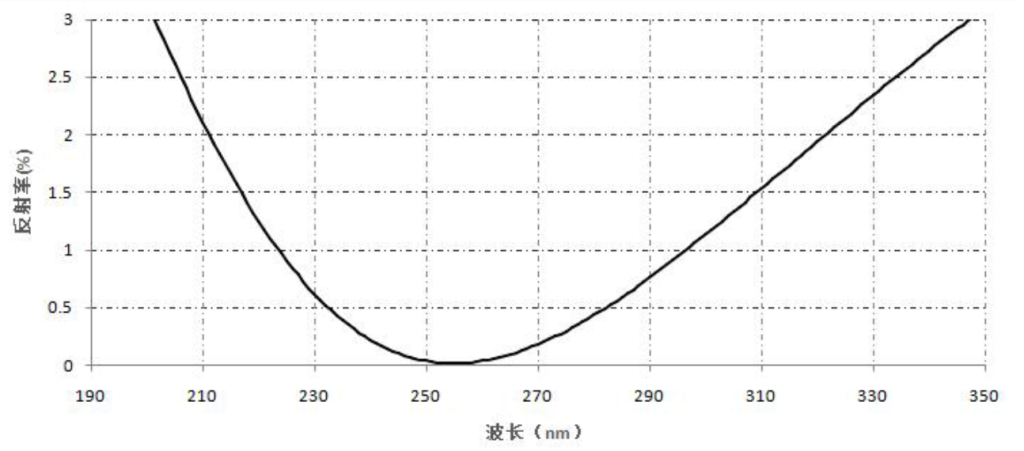

SINGLE WAVELENGTH AR(UV)
| 入射角：0º或45º Angle of Incidence: 0º or 45º | |
| 反射率（λ > 255 nm）： 非偏振；0°时 R≤0.25％，45°时 R≤0.5％ Reflectance (λ > 255 nm): | 反射率（λ ≤ 255 nm）： 非偏振；0°时 R≤1.0％，45°时 R≤1.5％ Reflectance (λ ≤ 255 nm): |
| 损伤阈值（λ > 255 nm）： 1.0 J/cm²，10 ns 脉冲 Damage Threshold (λ > 255 nm): | 损伤阈值（λ > 355 nm）： 3.0 J/cm²，10 ns 脉冲 Damage Threshold (λ > 355 nm): |

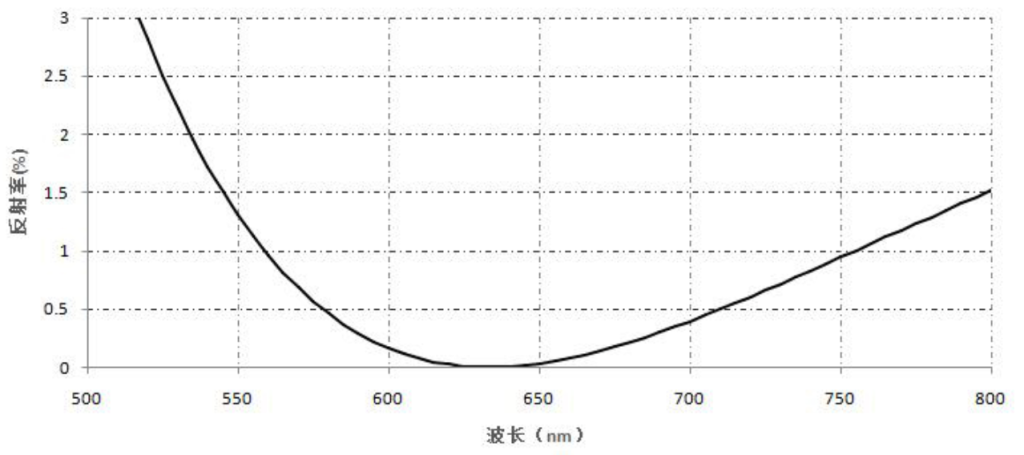

SINGLE WAVELENGTH AR(VIS/NIR)
| 入射角：0º或45º Angle of Incidence: 0º or 45º | 反射率：非偏振；0º时 R≤0.25％，45º时 R≤0.5％ Reflectance: Unpolarized; R≤0.25% at 0°, R≤0.5% at 45° |
| 损伤阈值（532nm）： 5 J/cm²，10 ns 脉冲 Damage Threshold (532nm): 5 J/cm², 10 ns pulse | 损伤阈值（1064nm）： 10 J/cm²，10 ns 脉冲 Damage Threshold (1064nm): 10 J/cm², 10 ns pulse |

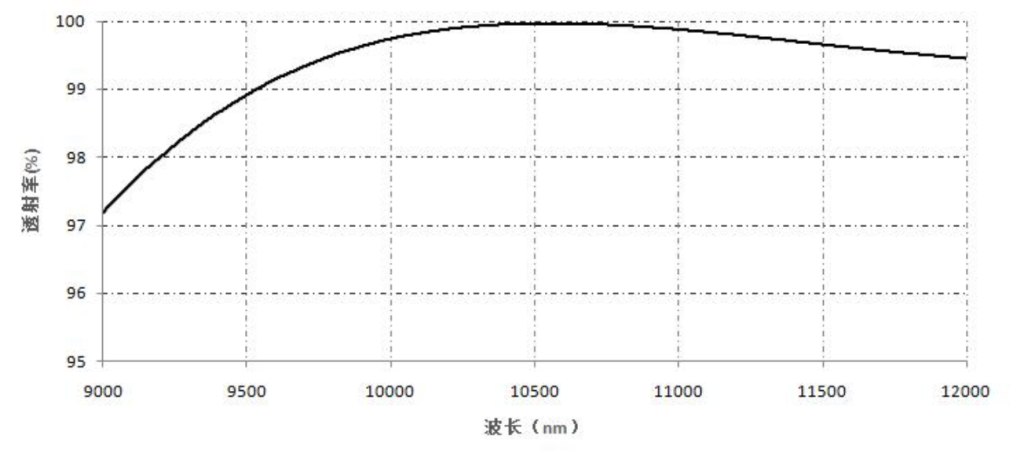

SINGLE WAVELENGTH AR(IR)
| 入射角：0º或45º Angle of Incidence: 0º or 45º | 透射率：非偏振；0º时 T>99.5%，45º时 T>99% Transmittance: Unpolarized; T>99.5% at 0°, T>99% at 45° |
| 损伤阈值（λ>10.6μm）： 2 J/cm²，10 ns 脉冲 Damage Threshold (λ>10.6μm): 2 J/cm², 10 ns pulse |
Broadband AR (VIS/NIG)
| 入射角：0º或45º Angle of Incidence: 0º or 45º | 反射率：非偏振；0°时 Ravg<0.5％，45°时 Ravg<1.0％ Reflectance: Unpolarized; Ravg<0.5% at 0°, Ravg<1.0% at 45° |
Broadband AR (IR)
| 入射角：0º或45º Angle of Incidence: 0º or 45º | 透射率：非偏振；0°时 Tavg>97%，45°时 Tavg>96% Transmittance: Unpolarized; Tavg>97% at 0°, Tavg>96% at 45° |
| 损伤阈值：2 J/cm²，10 ns 脉冲 Damage Threshold: 2 J/cm², 10 ns pulse |

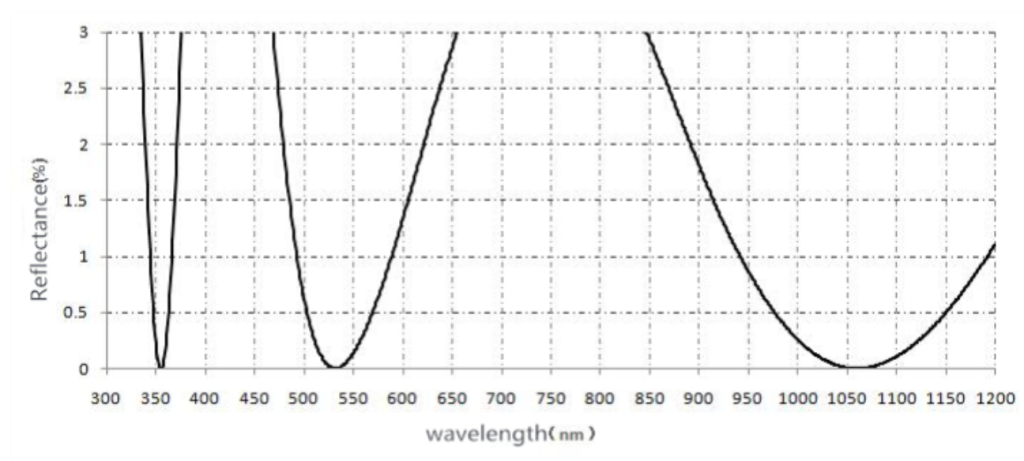

Multi-Wavelength AR
|
入射角：0º Angle of Incidence: 0º |
反射率：R≤0.5％ Reflectance: R≤0.5% |
|
损伤阈值：5 J/cm²，10 ns 脉冲 Damage Threshold: 5 J/cm², 10 ns pulse |
