Metal Coating
Metal coatings have good plasticity, toughness, strength, and adaptability to the environment. Elyonoptics can customize various metal coatings according to customer requirements, including bare aluminum, protected aluminum, enhanced aluminum, protected silver, enhanced silver, bare gold, protected gold, and enhanced gold.

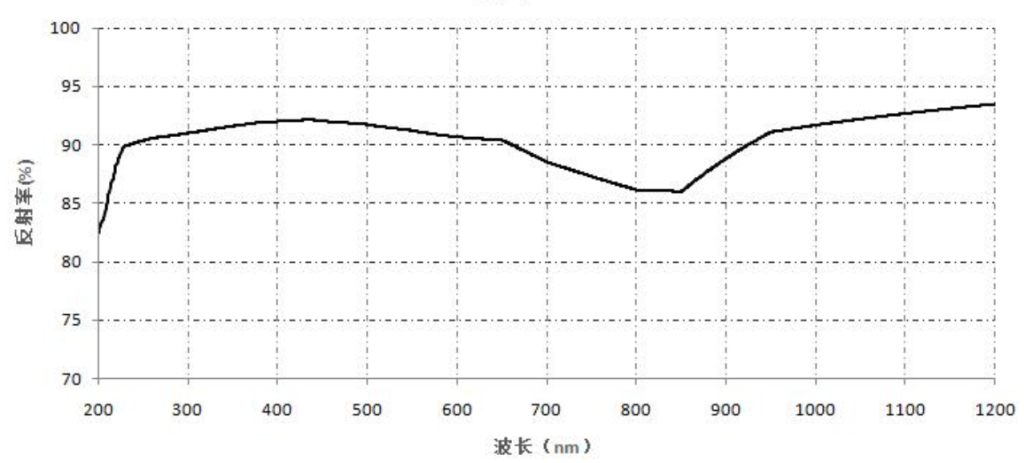

Bare Aluminum
| 入射角 / Angle of Incidence | 反射率（λ ：185-400nm） Reflectance (λ:185-400nm) |
反射率（λ ：400-850nm） Reflectance (λ:400-850nm) |
反射率（λ ：0.85-20μm） Reflectance (λ:0.85-20μm) |
|---|---|---|---|
| 0º 或 45º 0º or 45º |
非偏振；Ravg>90％ Unpolarized; Ravg>90% |
非偏振；Ravg>88％ Unpolarized; Ravg>88% |
非偏振；Ravg>97％ Unpolarized; Ravg>97% |

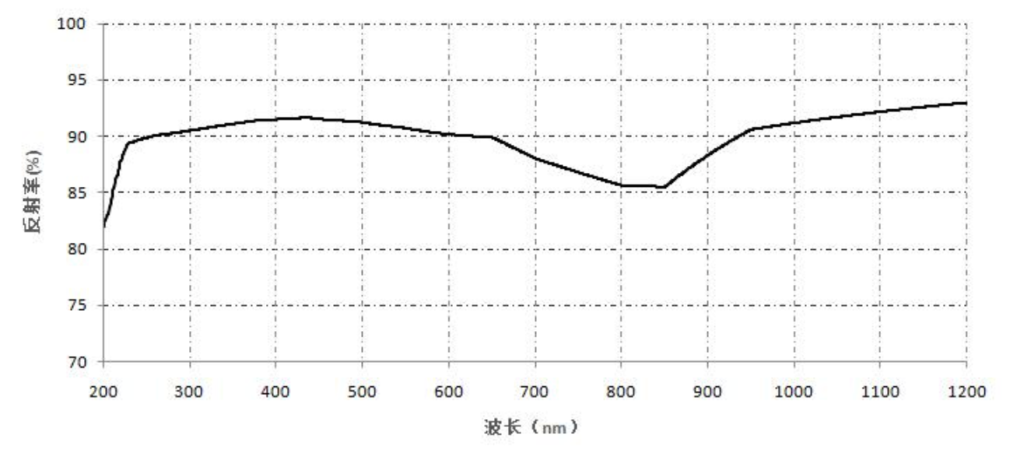

Protected Aluminum
| 入射角：0º或45º / Angle of Incidence: 0º or 45º | 反射率（λ：185-400nm）：非偏振；Ravg>90% / Reflectance (λ: 185-400nm): Unpolarized; Ravg>90% |
| 反射率（λ：400-850nm）：非偏振；Ravg>88% / Reflectance (λ: 400-850nm): Unpolarized; Ravg>88% | 反射率（λ：0.85μm – 20μm）：非偏振；Ravg>97% / Reflectance (λ: 0.85μm – 20μm): Unpolarized; Ravg>97% |

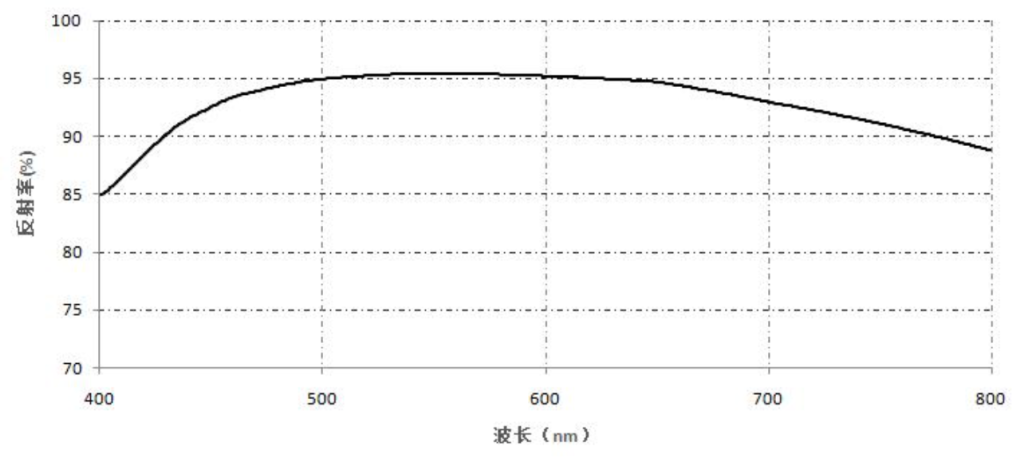

Enhanced Aluminum
| 入射角：0º或45º / Angle of Incidence: 0º or 45º |
| 反射率（λ：400-700nm）：非偏振；Ravg>93% / Reflectance (λ: 400-700nm): Unpolarized; Ravg>93% |

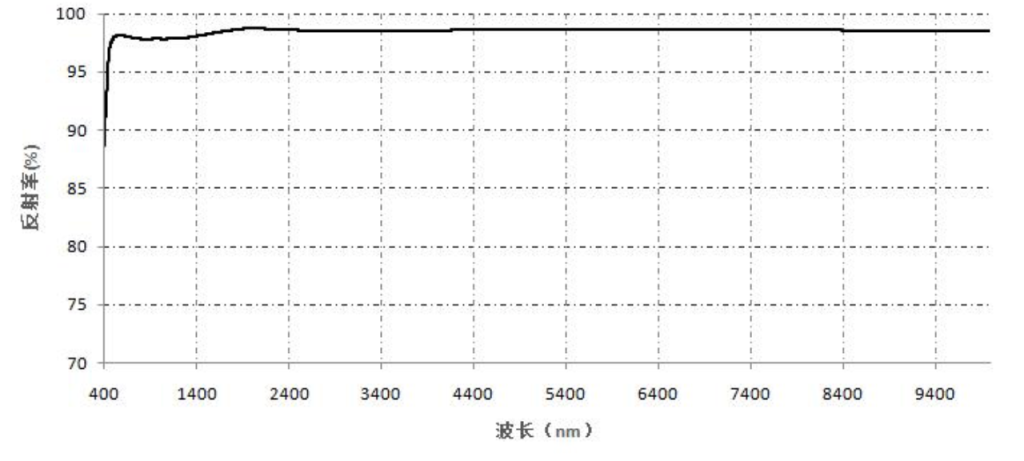

Protected Silver
| 入射角：0º或45º / Angle of Incidence: 0º or 45º |
| 反射率（λ：0.4μm-20μm）：非偏振；Ravg>97%，R>90% / Reflectance (λ: 0.4μm-20μm): Unpolarized; Ravg>97%, R>90% |

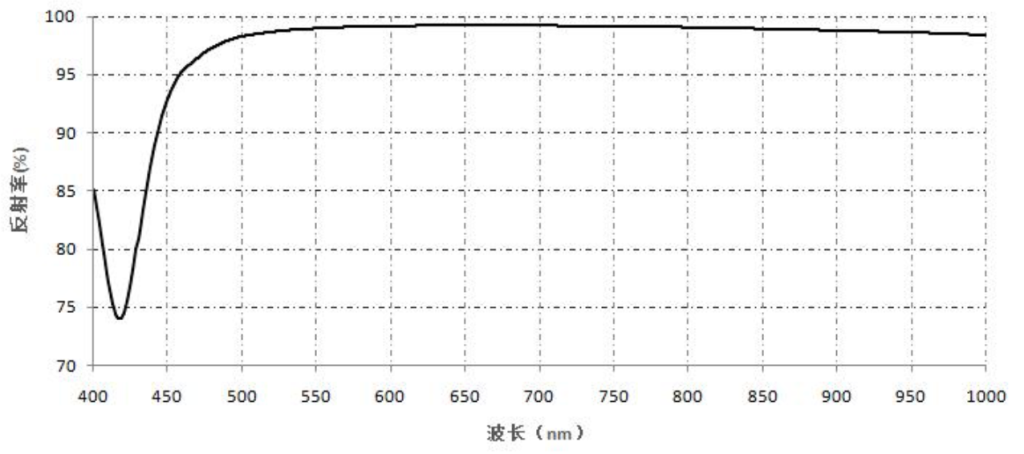

Enhanced Silver
| 入射角：0º或45º / Angle of Incidence: 0º or 45º |
| 反射率（λ：500μm-1000μm）：非偏振；Ravg>98.5%，R>96% / Reflectance (λ: 500μm-1000μm): Unpolarized; Ravg>98.5%, R>96% |

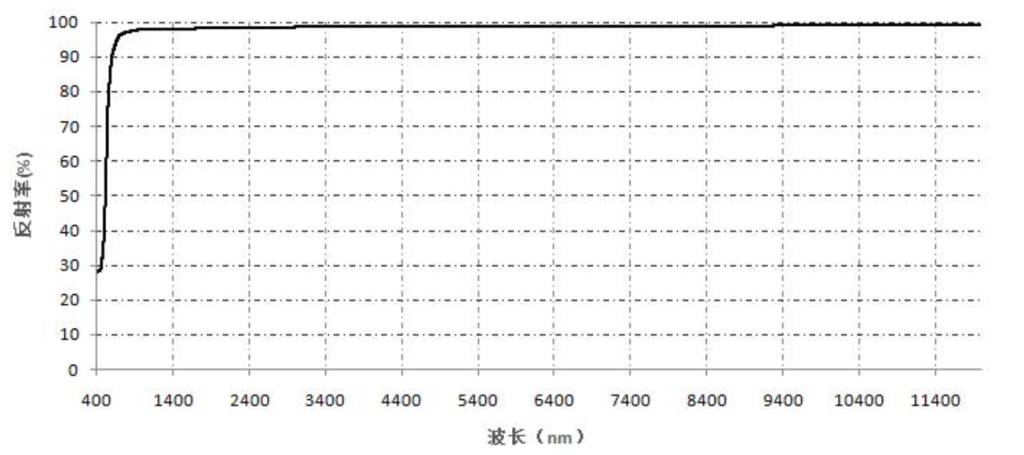

Bare Gold
| 入射角：0º或45º / Angle of Incidence: 0º or 45º |
| 反射率（λ：0.65μm-20μm）：非偏振；Ravg>99%，R>95% / Reflectance (λ: 0.65μm-20μm): Unpolarized; Ravg>99%, R>95% |

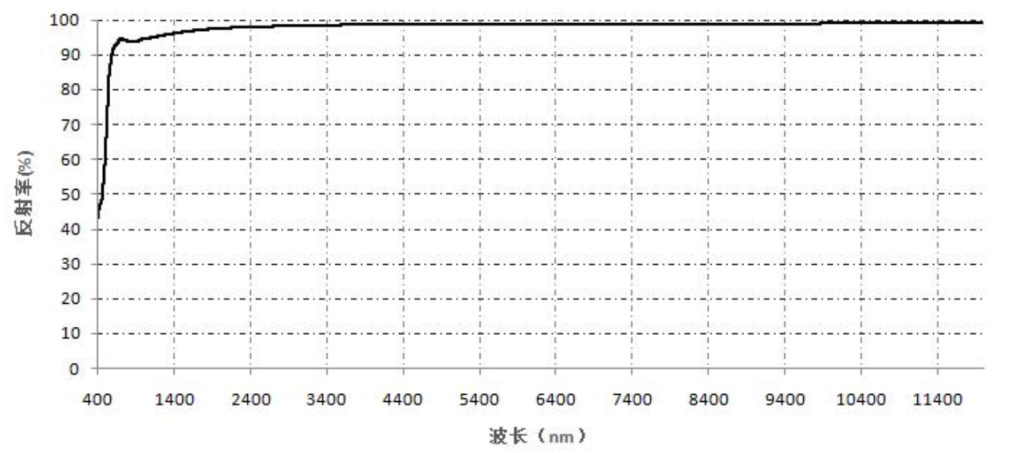

Protected Gold
| 入射角：0º或45º / Angle of Incidence: 0º or 45º |
| 反射率（λ：0.65μm-20μm）：非偏振；Ravg>99%，R>95% / Reflectance (λ: 0.65μm-20μm): Unpolarized; Ravg>99%, R>95% |

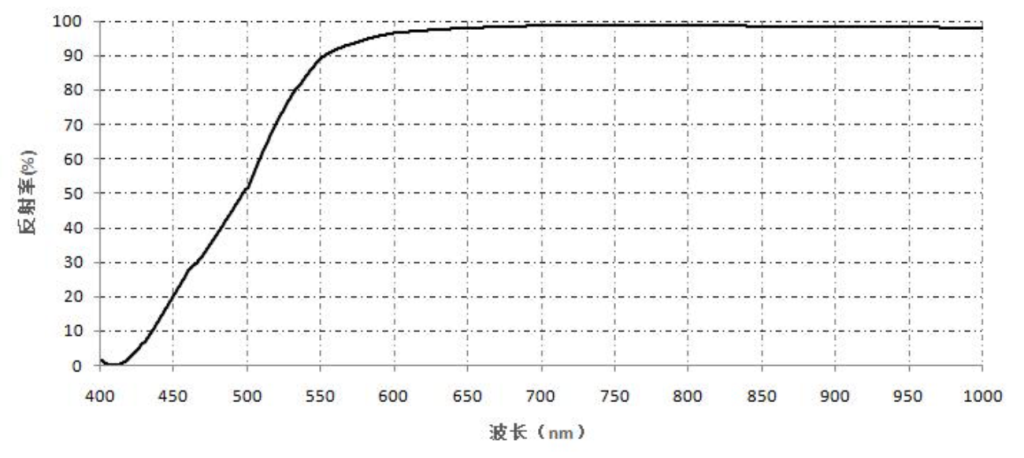

Enhanced Gold
| 入射角：0º或45º / Angle of Incidence: 0º or 45º |
| 反射率（λ：700μm-900μm）：非偏振；Ravg>99%，R>98% / Reflectance (λ: 700μm-900μm): Unpolarized; Ravg>99%, R>98% |
