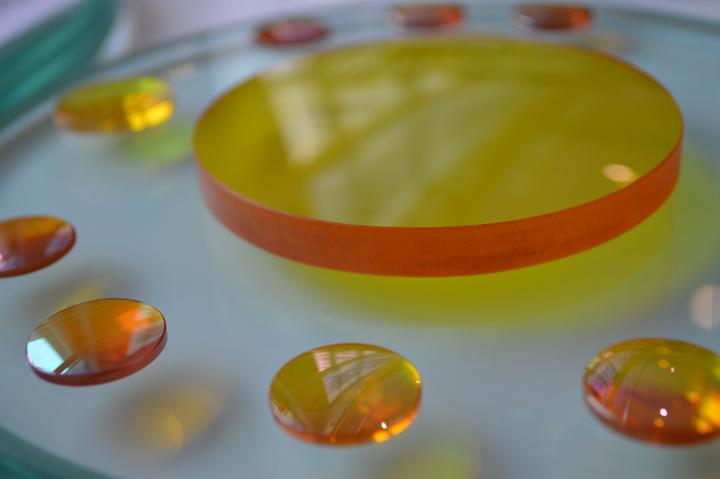

Custom ZnSe Optical Lenses
Zinc Selenide (ZnSe) optical lenses are widely used in infrared and laser systems due to their excellent transmission properties and outstanding optical performance. For industrial applications, standard components may not always meet specific requirements, making custom ZnSe optical lenses an ideal solution for engineers and equipment manufacturers.
This article explains the material properties, coatings, manufacturing process, and key considerations when ordering custom ZnSe lenses.
Why Choose ZnSe for Optical Lenses?
ZnSe is one of the most popular infrared optical materials because of its unique combination of optical and physical properties.
Excellent Infrared Transmission
ZnSe provides high transmission from approximately 0.6 μm to 20 μm, making it suitable for both visible alignment lasers and infrared systems.
Ideal for CO₂ Lasers
With outstanding transmission at 10.6 μm, ZnSe has become the standard material for CO₂ laser focusing and beam delivery optics.
Low Absorption Loss
High-purity ZnSe minimizes energy loss and heat generation, which is particularly important for high-power laser applications.
Good Machinability
Compared with some other infrared materials, ZnSe can be precision-machined into complex optical geometries while maintaining excellent surface quality.
Common Types of Custom ZnSe Lenses
Manufacturers can produce a wide variety of lens designs based on customer specifications.
Plano Convex ZnSe Lenses
Plano convex lenses are commonly used for:
- Laser focusing
- Beam collimation
- Optical imaging systems
They provide efficient focusing performance with minimal optical aberrations under proper operating conditions.
Plano Concave ZnSe Lenses
Plano concave lenses are suitable for:
- Beam expansion
- Diverging optical systems
- Specialized laser configurations
Meniscus ZnSe Lenses
Meniscus lenses help reduce spherical aberrations and are frequently used in high-performance laser equipment.
Aspheric ZnSe Lenses
Aspheric designs provide superior optical performance by minimizing aberrations and improving focusing accuracy, especially in demanding infrared applications.
Optical Coatings for Custom ZnSe Lenses
Coatings play a critical role in maximizing transmission efficiency and protecting optical surfaces.
Anti-Reflection (AR) Coatings
AR coatings reduce reflection losses and increase optical transmission within specific wavelength ranges.
Common options include:
- 8–12 μm AR coatings
- 10.6 μm CO₂ laser AR coatings
- Dual-band infrared coatings
- Broadband infrared AR coatings
Diamond-Like Carbon (DLC) Coatings
DLC coatings offer:
- Improved scratch resistance
- Higher durability
- Better environmental protection
- Extended service life in harsh industrial conditions
These coatings are particularly suitable for high-power laser systems and demanding operating environments.
Custom Manufacturing Process
Producing high-quality custom ZnSe optical lenses requires strict quality control throughout every stage of manufacturing.
Material Selection
High-purity CVD ZnSe material is selected to ensure excellent optical transmission and uniform performance.
Precision Machining
Advanced CNC equipment and optical processing technologies are used to achieve the required dimensions and geometries.

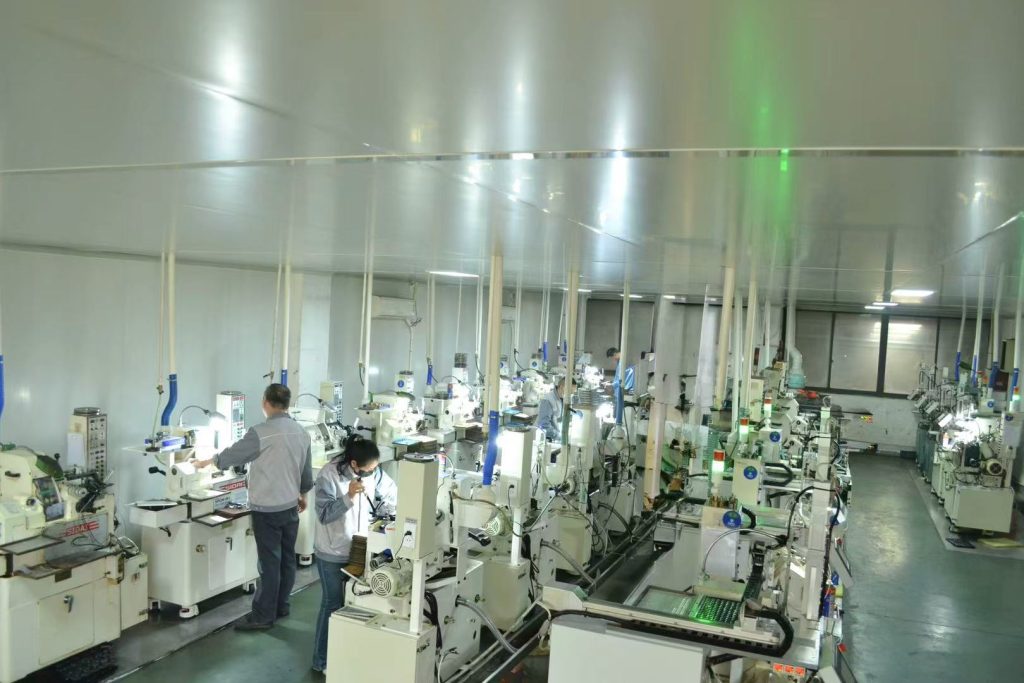

Fine Grinding and Polishing
Surface quality directly affects optical performance. Precision polishing processes help achieve high surface accuracy and low scattering losses.
Coating Application
Specialized coating systems apply AR or DLC coatings according to customer wavelength requirements and environmental conditions.

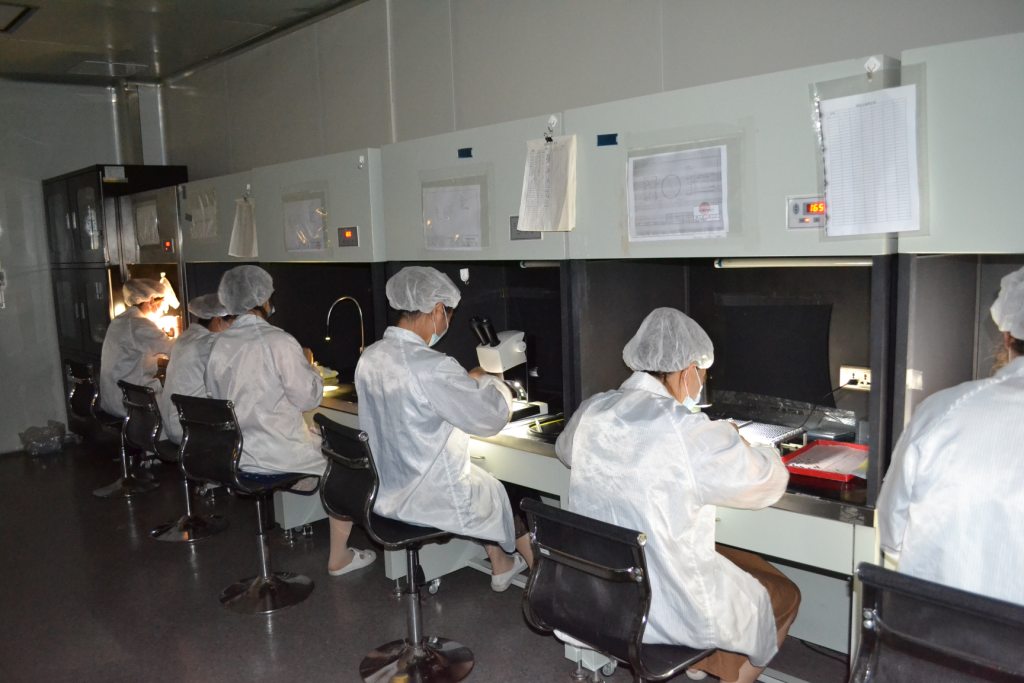

Quality Inspection
Every lens undergoes comprehensive inspection, including:
- Dimensional measurement
- Surface quality verification
- Surface flatness testing
- Transmission analysis
- Coating performance evaluation
Key Specifications for Custom Orders
When ordering custom ZnSe optical lenses, customers typically provide the following information:
| Specification | Typical Requirements |
|---|---|
| Diameter | Custom sizes available |
| Thickness | According to optical design |
| Focal Length | Customized |
| Surface Quality | 60/40, 40/20, or better |
| Surface Flatness | λ/10, λ/20 |
| Clear Aperture | More than 90% |
| Coating | AR, DLC, or custom options |
| Wavelength Range | 10.6 μm, 8–12 μm, etc. |
Providing complete technical requirements helps manufacturers deliver products that match application needs.
Applications of Custom ZnSe Optical Lenses
Custom ZnSe lenses are widely used across multiple industries.
Industrial Laser Systems
CO₂ laser cutting, welding, marking, and engraving equipment rely heavily on precision ZnSe focusing lenses.
Thermal Imaging Equipment
Infrared cameras and thermal imaging systems use ZnSe optics because of their excellent long-wave infrared transmission.
Medical Devices
Medical laser instruments require customized optical solutions to achieve precise energy delivery and reliable performance.
Scientific Research
Research laboratories use custom infrared optics for spectroscopy, measurement, and experimental systems.
Choosing the Right Custom ZnSe Lens Manufacturer
Selecting an experienced manufacturer is critical to achieving consistent optical quality.
Key factors include:
- Manufacturing capabilities
- Material quality standards
- Custom design support
- Coating technologies
- Quality control procedures
- International export experience
- Technical consultation services
A reliable supplier can help optimize both product performance and long-term operating costs. At ElyonOptics, we specialize in custom ZnSe lenses for industrial laser and infrared applications, offering flexible customization options, precision manufacturing, and various AR and DLC coating solutions to meet different project requirements. Our engineering team works closely with customers to deliver optical components that match specific technical specifications and application needs.
Conclusion
Custom ZnSe optical lenses provide flexible and high-performance solutions for infrared and CO₂ laser applications. By selecting the appropriate material quality, coating options, and manufacturing specifications, engineers can achieve superior optical performance and longer service life.
Whether for industrial lasers, thermal imaging systems, or scientific instruments, customized ZnSe lenses ensure that optical components precisely match the requirements of modern infrared applications.
