Custom Lens for Machine Vision

Machine vision systems rely on high-quality optics to capture clear, accurate images for automated inspection, measurement, identification, and process control. A standard camera lens may not always match the optical requirements of a specific machine vision application. A custom lens for machine vision provides a tailored optical solution based on the camera sensor, working distance, field of view, resolution, and inspection environment.

Custom machine vision lenses are widely used in industrial automation, electronics inspection, semiconductor manufacturing, automotive inspection, robotics, packaging, and other precision applications.

Custom Machine Vision Lens Design

A custom machine vision lens is designed around the actual optical and mechanical requirements of the vision system. Instead of adapting the application to a standard lens, the optical configuration can be optimized for the required imaging conditions.

Key design parameters include:

• Focal length
• Working distance
• Field of view
• Sensor format
• Resolution
• Magnification
• Aperture
• Depth of field
• Optical distortion
• Wavelength range
• Mechanical dimensions
• Mounting interface

These parameters work together to determine the final imaging performance. Proper optical design helps the camera capture consistent and high-resolution images across the required inspection area.

Optical Parameters for Machine Vision Applications

Focal Length

Focal length determines the relationship between the camera, lens, and inspection target. Different focal lengths can provide different fields of view and working distances.

A custom machine vision lens can be designed with a specific focal length to match the available installation space and required image area.

Working Distance

Working distance is the distance between the lens and the object being inspected. Industrial equipment often has strict space limitations, making working distance an important factor in lens selection.

Custom optical design allows the lens to accommodate unusual or application-specific working distances.

Field of View

Field of view defines the area captured by the camera. A suitable custom lens can provide the required field of view while maintaining image quality across the entire sensor.

This is particularly important for applications involving large inspection areas, narrow spaces, or high-resolution sensors.

Resolution and Image Quality

Machine vision inspection depends on clear image details. Lens resolution needs to match the camera sensor and the smallest feature that must be detected.

High-quality optical components, precision manufacturing, and optimized optical design help reduce image degradation and improve inspection accuracy.

Custom Lenses for Industrial Inspection

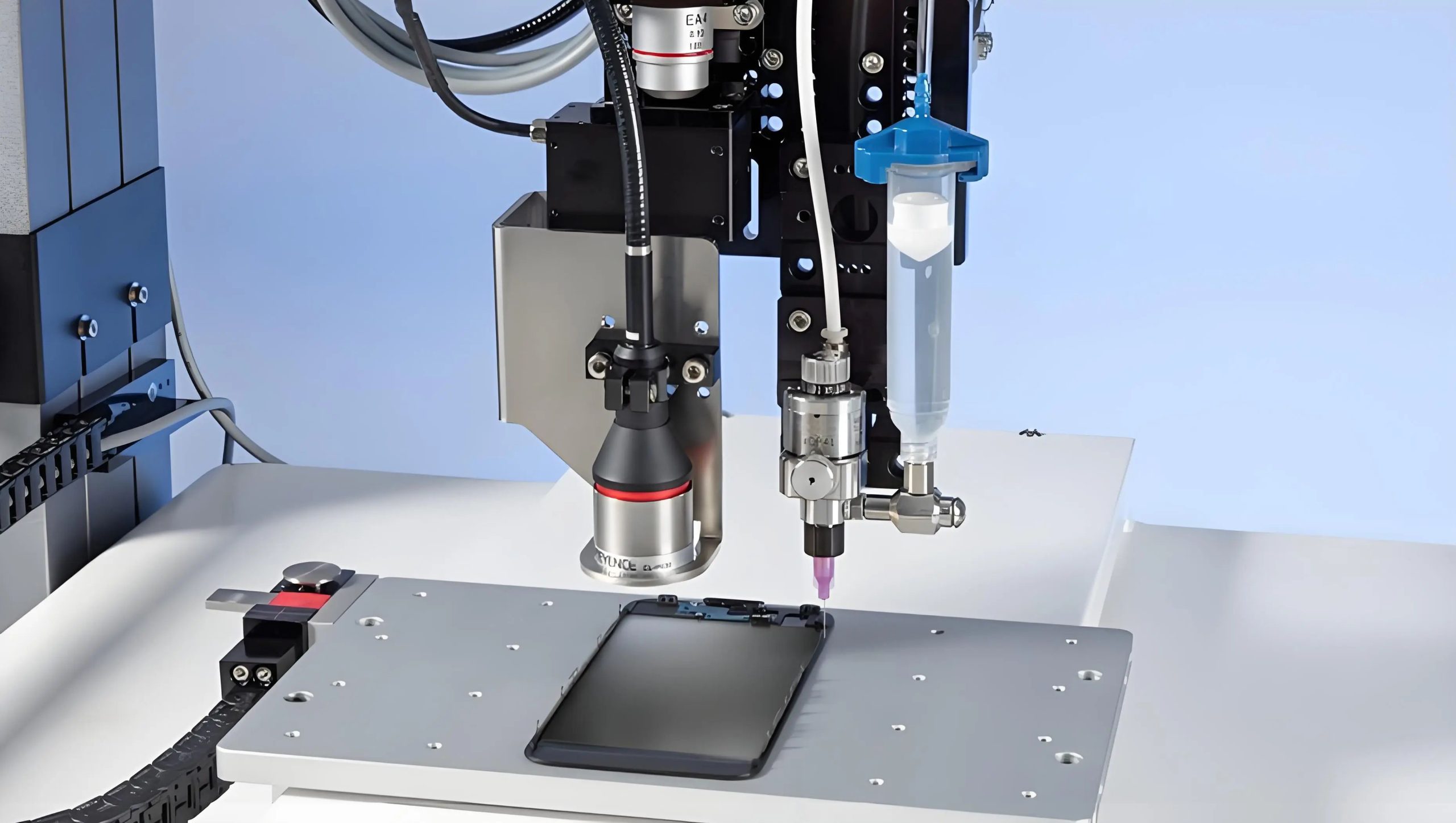

Custom lenses for machine vision are commonly integrated into automated inspection systems where consistent imaging performance is required.

Typical applications include:

Electronics Inspection

Machine vision systems inspect PCBs, connectors, electronic components, displays, and other precision parts. Custom optics can provide the required resolution and field of view for small components and fine details.

Automotive Inspection

Automotive manufacturing uses machine vision for component inspection, dimensional measurement, surface inspection, assembly verification, and quality control.

Custom machine vision lenses can be designed for different inspection distances and component sizes.

Semiconductor Inspection

Semiconductor applications require high-resolution imaging and precise optical performance. Custom optical components can be developed for demanding inspection and measurement systems.

Packaging Inspection

Packaging lines use machine vision for label inspection, barcode reading, printing verification, product positioning, and defect detection. A suitable custom lens helps maintain stable image quality during high-speed production.

Robotic Vision

Robotic systems use cameras and optical components for object recognition, positioning, picking, assembly, and automated handling. Custom lenses can be integrated into compact robotic vision systems where space and imaging requirements are highly specific.

Custom Machine Vision Optics for Different Sensors

The camera sensor is an important part of custom lens design. Sensor size, pixel size, resolution, and spectral response all affect the required optical configuration.

Machine vision cameras may use sensors such as:

• CMOS sensors
• High-resolution industrial sensors
• Line scan sensors
• Monochrome sensors
• Color sensors
• Infrared-sensitive sensors

A custom lens can be designed to provide suitable image coverage and optical performance for the selected sensor.

Materials for Custom Machine Vision Lenses

Different machine vision applications may require different optical materials. Material selection depends on wavelength, transmission, environmental conditions, optical performance, and application requirements.

Common optical materials include:

• Optical glass
• Fused silica
• BK7
• Calcium fluoride
• Sapphire
• Other application-specific optical materials

For visible-light imaging, optical glass and fused silica are widely used. Applications involving ultraviolet or infrared wavelengths may require specialized optical materials.

Custom Lens Coatings

Optical coatings can improve transmission and reduce unwanted reflections. The coating specification should match the operating wavelength and application environment.

Common coating requirements include:

• Visible spectrum coatings
• UV coatings
• Near-infrared coatings
• Broadband coatings
• Anti-reflection coatings

For machine vision systems operating under controlled illumination, the coating can be optimized for the specific wavelength range used by the imaging system.

Mechanical Design for Machine Vision Lenses

Optical performance is only one part of a custom machine vision lens. The mechanical structure must also integrate with the camera and inspection equipment.

Custom mechanical specifications may include:

• Lens diameter
• Overall lens length
• Camera mounting interface
• Thread specifications
• Aperture adjustment
• Focus adjustment
• Housing dimensions
• Installation orientation
• Environmental protection

Compact or specialized inspection equipment may require a lens housing with non-standard dimensions. Custom mechanical design allows the optical assembly to fit the available equipment space.

Custom Lens Manufacturing for Machine Vision

A professional optical manufacturer can provide the complete process from optical design to production.

The typical process includes:

1. Application and specification review
2. Optical design
3. Material selection
4. Prototype development
5. Optical testing
6. Mechanical integration
7. Coating
8. Precision manufacturing
9. Final inspection

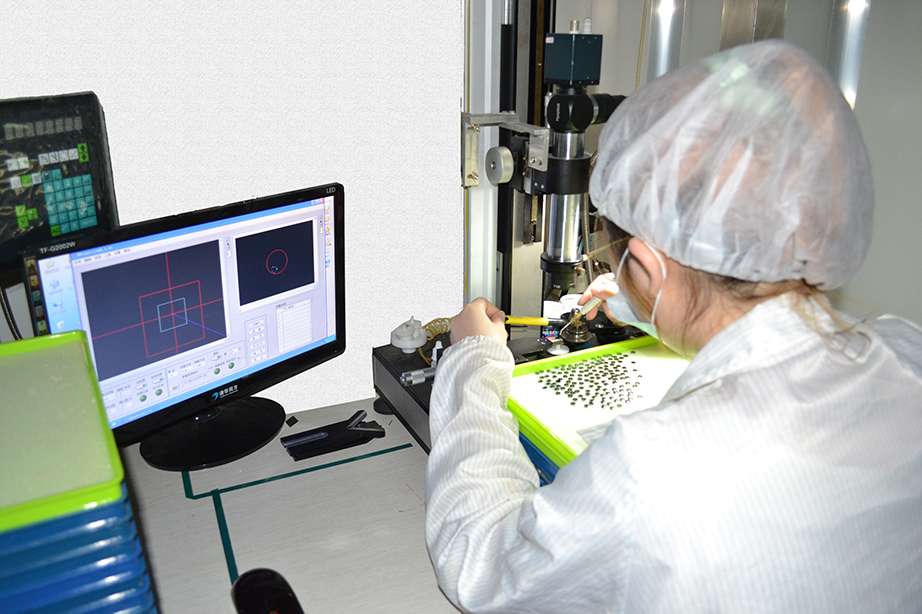

Testing can include measurements of resolution, transmission, distortion, focal length, surface quality, and other optical characteristics.

Custom Machine Vision Lens Supplier

Choosing the right supplier is important for applications requiring consistent optical performance and reliable production quality. An experienced custom optical lens manufacturer can work directly with machine vision system developers, camera manufacturers, automation companies, and industrial equipment manufacturers.

A suitable supplier should be able to support:

• Custom optical design
• Prototype production
• Small-batch manufacturing
• Volume production
• Optical coating
• Precision machining
• Optical inspection
• Custom mechanical integration

This integrated capability can simplify the development of specialized machine vision optics and reduce compatibility issues between the lens, camera, and inspection system.

Custom Lens Solutions for Machine Vision

A custom lens for machine vision is suitable for applications where standard optical products cannot fully satisfy the required imaging and mechanical specifications. By combining application-specific optical design, suitable materials, precision manufacturing, and custom mechanical construction, the lens can be optimized for the complete vision system.

ElyonOptics provides custom optical lens solutions for machine vision and industrial imaging applications, supporting customized specifications for focal length, field of view, working distance, sensor size, optical material, coating, and mechanical dimensions.

For a custom machine vision lens project, provide the camera model or sensor specification, required field of view, working distance, wavelength, resolution requirements, and available installation space. These parameters provide a practical starting point for developing a suitable optical solution.
