Optical Prisms Used in Laser Systems
Optical prisms are essential components in modern laser systems. They are widely used to manipulate laser beams with high precision, including beam steering, beam splitting, image rotation, polarization control, and optical alignment.
From industrial laser cutting machines to medical laser equipment and scientific instruments, optical prisms play a critical role in improving laser performance, efficiency, and accuracy.
As laser technology continues to evolve toward higher power, greater precision, and more compact systems, the demand for high-quality optical prisms is growing rapidly across multiple industries.
What Are Optical Prisms?
Optical prisms are transparent optical elements manufactured from precision optical materials such as:
- BK7
- Fused silica
- Sapphire
- ZnSe
- Germanium
- Silicon
Unlike conventional optical lenses that mainly focus light, prisms are designed to redirect, split, reflect, or rotate laser beams within optical systems.
They operate based on:
- Refraction
- Total internal reflection
- Polarization effects
These optical properties make prisms highly effective for laser beam control.
Why Optical Prisms Are Important in Laser Systems
Laser systems require extremely accurate optical alignment and beam management. Optical prisms provide several advantages:
- High optical precision
- Stable beam control
- Low optical loss
- Compact optical design
- Excellent thermal stability
- High laser damage threshold
Compared with mirrors alone, prisms often provide better alignment stability and more efficient internal reflection.
Main Applications of Optical Prisms in Laser Systems
Beam Steering
One of the most common uses of optical prisms is changing the direction of laser beams.
Right angle prisms and penta prisms are frequently used to:
- Bend laser paths by 90°
- Reverse beam direction
- Optimize optical layouts
Beam steering is widely used in:
- Laser cutting machines
- Laser marking systems
- Medical lasers
- Scientific laser instruments
Beam Splitting
Beam splitter prisms divide a single laser beam into multiple beams with controlled intensity ratios.
Applications include:
- Interferometers
- Laser measurement systems
- Optical communication
- Medical imaging
- Scientific research
Beam splitting allows multiple optical paths to operate simultaneously within one laser system.
Polarization Control
Certain optical prisms are designed to separate or manipulate polarized light.
Polarizing beam splitter prisms are commonly used in:
- Laser interferometry
- Optical testing equipment
- Quantum optics
- Telecommunications
Precise polarization control is essential for many advanced laser applications.
Image Rotation and Inversion
Some laser imaging systems require image correction or rotation.
Roof prisms and Dove prisms are used for:
- Image inversion
- Optical image rotation
- Beam orientation adjustment
These functions are important in precision optical instruments and laser scanning systems.
Laser Alignment Systems
Optical prisms help maintain accurate optical alignment in high-precision laser equipment.
They are widely used in:
- CNC laser systems
- Semiconductor manufacturing
- Scientific laboratories
- Optical calibration equipment
Stable beam alignment improves overall system accuracy and reliability.
Common Types of Optical Prisms Used in Laser Systems
Right Angle Prism
Right angle prisms are among the most widely used laser optics components.
Features:
- Efficient 90° beam deflection
- Compact design
- Total internal reflection capability
Applications:
- Laser beam steering
- Alignment systems
- Optical assemblies
Beam Splitter Prism
Beam splitter prisms divide laser beams into separate optical paths.
Advantages:
- High splitting accuracy
- Stable optical performance
- Low energy loss
Used in:
- Laser diagnostics
- Interferometers
- Medical imaging systems
Polarizing Prism
Polarizing prisms separate light according to polarization state.
Applications include:
- Polarization measurement
- Optical testing
- Scientific research
Dove Prism
Dove prisms rotate images inside laser imaging systems.
Commonly used in:
- Laser scanning
- Metrology equipment
- Optical processing systems
Optical Materials for Laser Prisms
Material selection is critical for laser applications because different wavelengths and power levels require different optical properties.
BK7 Optical Glass
Suitable for:
- Visible light lasers
- General optical applications
Advantages:
- Cost-effective
- Good optical clarity
Fused Silica
Widely used for:
- UV lasers
- High-power laser systems
Advantages:
- Excellent thermal stability
- High laser damage resistance
ZnSe
Common in:
- CO2 laser systems
Advantages:
- Excellent infrared transmission
- Suitable for 10.6μm wavelength

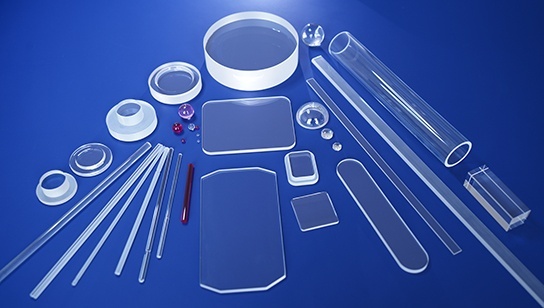

Sapphire
Used in harsh environments due to:
- Extreme hardness
- Chemical resistance
- High temperature stability
Precision Manufacturing Requirements
Laser systems demand extremely high optical precision. Important manufacturing parameters include:
- Surface flatness
- Angular accuracy
- Surface quality
- Parallelism
- Coating performance
Advanced coating technologies are also essential for:
- Anti-reflection coatings
- High-reflective coatings
- Laser wavelength optimization
Industries Using Laser Optical Prisms
Optical prisms are widely used in many laser-related industries:

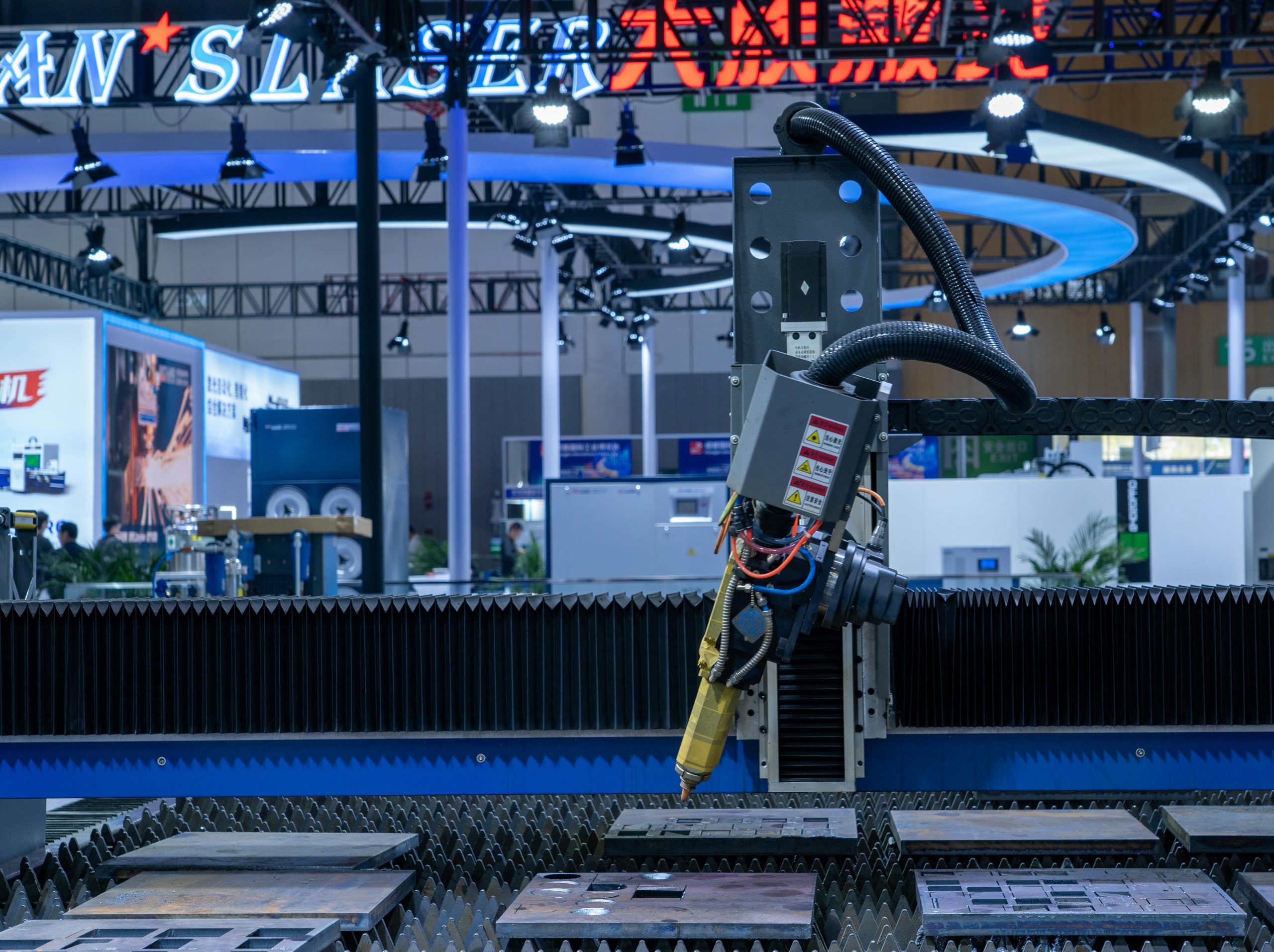

Industrial Manufacturing
- Laser cutting
- Laser welding
- Laser engraving
Medical Equipment
- Laser surgery
- Dermatology lasers
- Ophthalmic lasers
Scientific Research
- Spectroscopy
- Interferometry
- Laboratory optics
Semiconductor Industry
- Wafer inspection
- Lithography systems
- Precision measurement
Telecommunications
- Optical communication systems
- Fiber optic equipment
Future Trends of Optical Prisms in Laser Technology
As laser technology advances, optical prisms are evolving toward:
- Higher laser power resistance
- Ultra-precision manufacturing
- Miniaturized optical systems
- Custom prism geometries
- Advanced infrared materials
Emerging technologies such as:
- Autonomous vehicles
- AI optical systems
- AR/VR devices
- Quantum optics
will further increase demand for precision laser optics.
Conclusion
Optical prisms are critical components in modern laser systems, enabling precise beam control, beam splitting, polarization management, and optical alignment.
With the rapid growth of industrial lasers, medical laser devices, and advanced photonics technologies, demand for high-quality optical prisms continues to expand worldwide.
Manufacturers capable of providing precision optical prism solutions with advanced materials and custom coatings will play an important role in the future laser optics industry.
