Infrared Optics for Machine Vision Applications
Infrared machine vision extends conventional imaging beyond the visible spectrum, enabling optical inspection in applications where visible light cannot provide sufficient contrast or information. By using infrared wavelengths, machine vision systems can detect material differences, surface features, temperature variations, and other characteristics that may be difficult to identify with standard visible-light imaging.
For these applications, infrared optics are essential for transmitting and focusing the required wavelength range while maintaining image quality and system performance.
Infrared Optics in Machine Vision
Infrared machine vision typically uses optical components designed for specific spectral ranges, including near-infrared (NIR), short-wave infrared (SWIR), mid-wave infrared (MWIR), and long-wave infrared (LWIR).
The optical components need to provide suitable transmission, dimensional stability, and optical performance within the target wavelength range. Depending on the application, an infrared imaging system may incorporate infrared lenses, optical windows, filters, or protective windows.
Compared with conventional visible-light optics, infrared optics require different optical materials and coating solutions to achieve efficient transmission at infrared wavelengths.
Infrared Lenses for Industrial Inspection
Infrared lenses are used to collect and focus infrared radiation onto the detector or imaging sensor. Their material selection depends largely on the operating wavelength and environmental conditions.
Common optical materials used for infrared applications include:
- Germanium

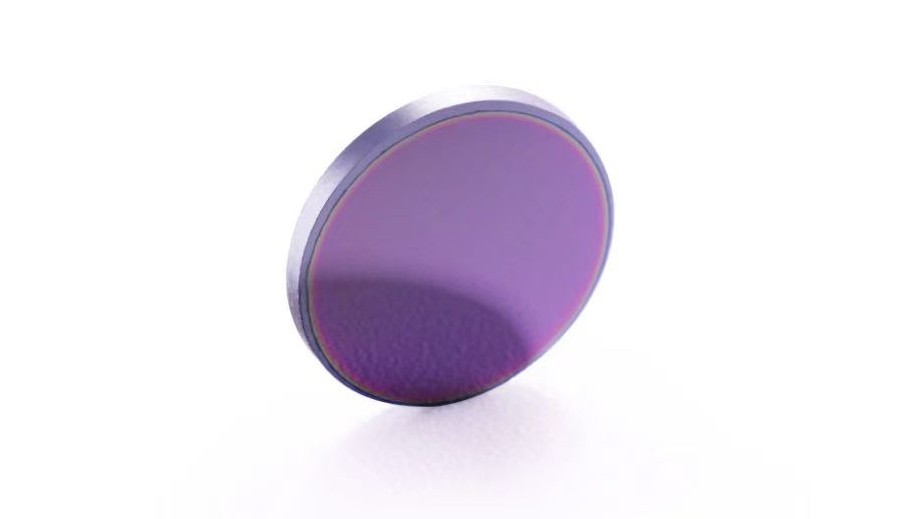

- Silicon

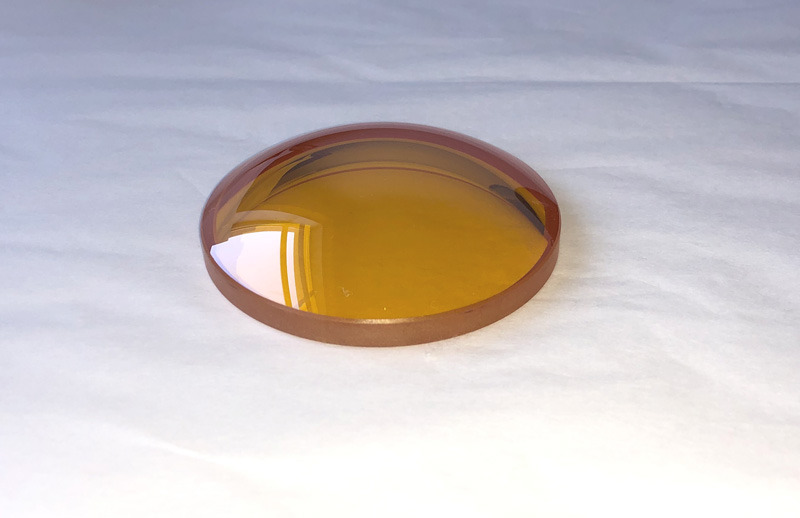

- Zinc Selenide (ZnSe)

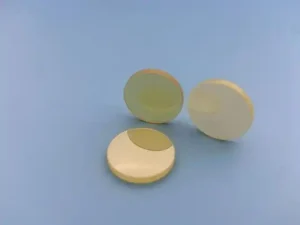

- Zinc Sulfide (ZnS)
- Calcium Fluoride (CaF₂)
- Sapphire
Germanium optics, for example, are widely used in thermal infrared applications because of their suitable transmission characteristics in the infrared spectrum. Silicon optics can also be used in specific infrared imaging and sensing applications, while ZnSe and ZnS are suitable for a range of infrared optical systems.
SWIR Optics for Machine Vision
SWIR optics are particularly relevant to industrial machine vision and inspection. SWIR imaging can reveal information that is not readily visible in the visible spectrum, making it useful for applications such as material inspection, semiconductor processing, agricultural inspection, and quality control.
A SWIR optical system may require specially designed SWIR lenses, optical windows, and filters to maintain sufficient transmission and image quality across the required wavelength range.
The choice of optical material should therefore be considered together with the sensor wavelength, working distance, field of view, environmental conditions, and required optical performance.
Infrared Optical Windows and Filters
In addition to imaging lenses, infrared optical windows can protect sensitive detectors and optical assemblies while allowing infrared radiation to pass through efficiently.
Infrared filters can also be integrated into machine vision systems to control the spectral range reaching the detector. This can improve image contrast and help isolate specific wavelength bands for inspection and sensing applications.
The appropriate combination of lenses, windows, filters, materials, and coatings depends on the optical design and operating wavelength of the system.
Optical Components for Infrared Machine Vision
The performance of an infrared machine vision system depends not only on the detector or camera but also on the optical components positioned in front of it. Properly selected infrared optical components can help achieve efficient transmission, accurate imaging, and reliable operation under demanding industrial conditions.
Applications include:
- Industrial product inspection
- Material identification
- Semiconductor inspection
- Solar cell inspection
- Agricultural and food inspection
- Non-contact temperature measurement
- Defect detection
- Process monitoring
Different applications require different wavelength ranges and optical configurations, making customized optical solutions important for specialized machine vision systems.
Infrared Optics from ElyonOptics
ElyonOptics provides infrared optical components for machine vision, sensing, imaging, and other infrared applications. Our product range includes infrared lenses, optical windows, and infrared optical components manufactured from materials such as Germanium, Silicon, ZnSe, ZnS, CaF₂, and Sapphire.
Based on the required wavelength range, dimensions, optical performance, coating requirements, and application conditions, ElyonOptics can provide optical components suitable for customized infrared machine vision and imaging applications.
