Laser Machine Lens for Cutting Welding and Marking
Laser machine lenses are essential optical components that determine the precision, efficiency, and reliability of modern laser processing systems. Whether used for laser cutting, laser welding, or laser marking, the right laser lens directly influences beam quality, focal accuracy, processing speed, and the service life of the laser equipment.
Industrial laser machines typically employ multiple optical elements—including focusing lenses, collimating lenses, and protective windows—to achieve optimal performance. Selecting high-quality laser machine lenses is critical for manufacturers seeking consistent processing results and lower maintenance costs.
What Is a Laser Machine Lens?
A laser machine lens is an optical component designed to control, shape, focus, or protect the laser beam within an industrial laser system.
Depending on the laser application, different lens types perform different functions, including:
- Beam focusing
- Beam collimation
- Beam expansion
- Optical protection
- Laser energy transmission
Laser machine lenses are widely used in:
- Fiber laser cutting machines
- CO₂ laser cutting systems
- Laser welding equipment
- Laser marking machines
- Laser engraving machines
- Laser cleaning systems
- Semiconductor laser equipment
Laser Machine Lenses for Laser Cutting
Laser cutting requires extremely high beam quality and precise focal positioning. High-performance optical lenses ensure narrow kerf width, smooth cutting edges, and improved cutting speed.
Common lenses used in laser cutting
- Laser Focusing Lens
- Laser Collimating Lens
- Laser Protective Window
- Plano Convex Lens
- Meniscus Lens
Recommended optical materials

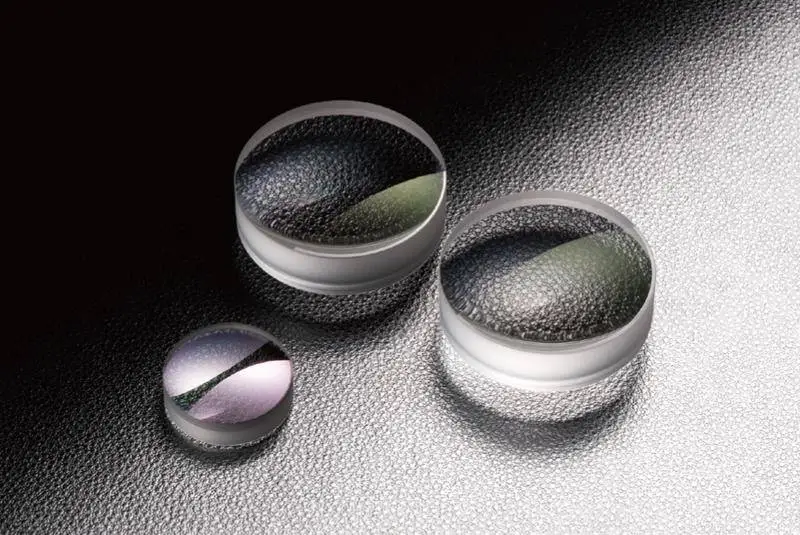

Fused Silica
Fused silica offers:
- Excellent transmission at 1064–1080 nm
- Outstanding thermal stability
- High laser damage threshold
- Long service life
It is the preferred material for modern fiber laser cutting machines.
Zinc Selenide (ZnSe)
ZnSe lenses are designed for CO₂ laser systems operating at 10.6 μm.
Typical applications include:
- Acrylic cutting
- Wood cutting
- Plastic processing
- Textile cutting
Laser Machine Lenses for Laser Welding
Laser welding demands stable beam focusing and excellent optical performance. A high-quality focusing lens helps achieve deeper penetration, stronger welds, and reduced heat-affected zones.
Laser welding systems commonly use:
- Precision Focusing Lens
- Collimating Lens
- Protective Window
- Plano Convex Lens
- Aspheric Lens
Advantages include:
- Stable laser power transmission
- High welding accuracy
- Reduced optical loss
- Improved production efficiency
Laser Machine Lenses for Laser Marking
Laser marking requires a small and highly concentrated laser spot to produce permanent, high-resolution marks.
Laser marking optics usually include:
- Focusing Lens
- Collimating Lens
- F-Theta Lens
- Protective Window
Applications include:
- Metal marking
- Plastic engraving
- QR code marking
- PCB marking
- Electronic component identification
High-quality optical lenses improve marking speed while maintaining excellent image clarity.
Common Types of Laser Machine Lenses
Laser Focusing Lens
A focusing lens concentrates laser energy onto the workpiece. It is one of the most important optical components in laser processing equipment.
Applications include:
- Laser cutting
- Laser welding
- Laser drilling
- Laser engraving
Plano Convex Lens
Plano convex lenses are widely used as laser focusing lenses due to their simple optical design and excellent focusing performance.
They are suitable for:
- Fiber laser systems
- Scientific lasers
- Industrial laser equipment
- Optical measurement instruments
Laser Collimating Lens
A collimating lens converts divergent laser light into a parallel beam before focusing.
Typical applications:
- Fiber laser heads
- Laser scanners
- Optical communication systems
Laser Protective Window
Protective windows shield expensive optical components from:
- Dust
- Smoke
- Metal spatter
- Debris
- Contamination
Using high-quality protective windows significantly extends the service life of focusing lenses.
Choosing the Right Optical Material
Different laser wavelengths require different optical materials.
| Material | Typical Wavelength | Typical Applications |
|---|---|---|
| Fused Silica | UV–Near IR | Fiber laser cutting, welding, marking |
| ZnSe | 10.6 μm | CO₂ laser cutting and engraving |
| BK7 | Visible | Low-power laser systems |
| Germanium | Infrared | Thermal imaging and infrared optics |
| Silicon | Mid-IR | Industrial infrared applications |
Key Factors When Selecting a Laser Machine Lens
Before purchasing a laser machine lens, consider:
- Laser wavelength
- Laser power
- Lens material
- Focal length
- Surface accuracy
- Surface quality
- Optical coating
- Laser damage threshold
- Operating environment
A properly selected lens improves processing quality while reducing downtime and replacement costs.
Applications Across Industries
Laser machine lenses are widely used in:
- Metal fabrication
- Automotive manufacturing
- Aerospace
- Electronics manufacturing
- Medical devices
- Semiconductor production
- Scientific research
- Precision machining
As industrial laser technology continues to advance, demand for high-performance optical components continues to grow.
Why Choose Elyonoptics
Elyonoptics specializes in manufacturing precision optical components for industrial laser systems.
Our product portfolio includes:
- Plano Convex Lenses
- Laser Focusing Lenses
- Laser Collimating Lenses
- Laser Protective Windows
- Fused Silica Lenses
- ZnSe Lenses
- Germanium Lenses
- Custom Optical Components
With advanced manufacturing technology, strict quality inspection, and customized production capabilities, we provide reliable optical solutions for laser equipment manufacturers and OEM customers worldwide.
Conclusion
Laser machine lenses are indispensable components in laser cutting, laser welding, and laser marking systems. Selecting the appropriate lens type, optical material, and coating improves beam quality, processing accuracy, and equipment reliability.
Whether you require standard optical components or customized laser optics, high-quality laser machine lenses are essential for achieving consistent industrial performance.
