Custom Silicon Windows with Optical Coatings
Silicon windows are widely used in infrared optical systems where high transmission in the infrared spectrum, mechanical stability, and precise optical performance are required. For applications with specific wavelength, environmental, or integration requirements, standard silicon windows may not provide the exact performance needed. Custom silicon windows with optical coatings offer a flexible solution for demanding infrared optical applications.
Silicon Windows for Infrared Optical Systems

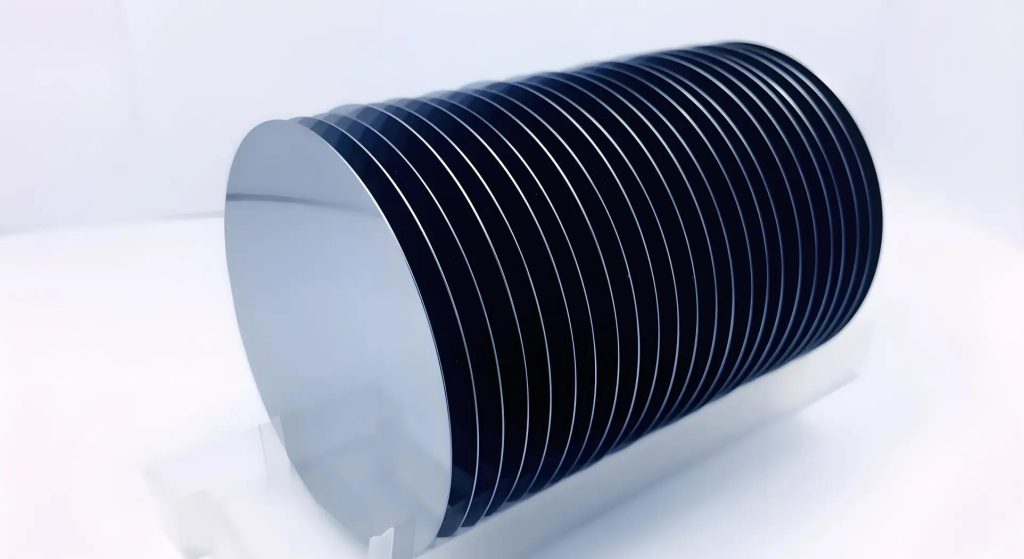

Silicon is commonly selected as an optical material for infrared applications because of its suitable transmission range and robust physical properties. Silicon windows can be used as protective or functional optical elements in infrared imaging systems, sensors, laser systems, spectroscopy equipment, and other optical assemblies.
Depending on the application, a silicon window can be manufactured in different diameters, thicknesses, shapes, and edge configurations. Dimensional tolerances and surface specifications can also be customized according to the optical system and mechanical mounting requirements.
Custom Silicon Window Manufacturing
Custom silicon windows are typically produced according to application-specific drawings or technical specifications. Important parameters may include:
- Diameter or length and width
- Thickness
- Surface flatness
- Parallelism
- Surface quality
- Edge finish
- Chamfers
- Dimensional tolerances
- Wavelength range
- Coating requirements
For optical systems with limited installation space or specialized mechanical structures, custom dimensions can help simplify integration while maintaining the required optical performance.

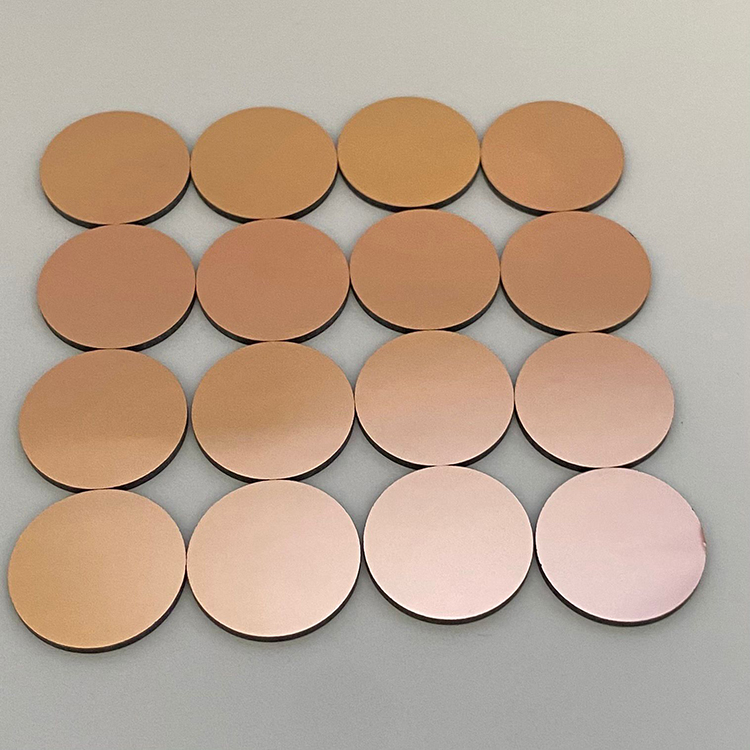

Optical Coatings for Silicon Windows
Optical coating selection is an important part of silicon window design. An uncoated silicon surface can produce significant reflection, which may reduce transmission through the optical element. Applying an appropriate anti-reflective coating can improve transmission and optimize the window for a specific infrared wavelength range.
Custom coating options can be selected according to the intended application. Coating specifications may include the operating wavelength range, angle of incidence, polarization requirements, environmental conditions, and required reflectance or transmission performance.
Silicon windows can be supplied with coatings designed for specific infrared bands, including applications in the mid-wave and long-wave infrared regions.
Applications of Custom Silicon Windows
Custom silicon windows with optical coatings are suitable for a range of infrared optical systems, including:
- Infrared imaging systems
- Thermal imaging equipment
- IR sensors
- Laser systems
- Spectroscopy instruments
- Optical detection systems
- Industrial infrared equipment
- Defense and aerospace optical systems
For imaging and sensing applications, the optical window must work together with the rest of the optical system. Material selection, dimensions, surface quality, coating performance, and environmental requirements should therefore be considered as a complete optical specification.
Precision Silicon Windows for OEM Applications
OEM optical systems often require silicon windows with specific dimensions and performance requirements rather than standard catalog components. A custom optical supplier can manufacture silicon windows based on engineering drawings, sample components, or detailed technical specifications.
Additional requirements such as custom dimensions, surface treatment, edge processing, and optical coatings can be incorporated into the manufacturing process. This allows the silicon window to be matched to the optical and mechanical requirements of the final system.
For projects requiring custom silicon windows, providing the optical drawing, dimensions, wavelength range, coating requirements, quantity, and application information can help establish the appropriate manufacturing specification.
Custom silicon windows with precision machining and optical coatings provide an adaptable solution for infrared optical systems where standard components cannot meet specific design requirements.
