What Is a Cylindrical Lens and How Does It Work?

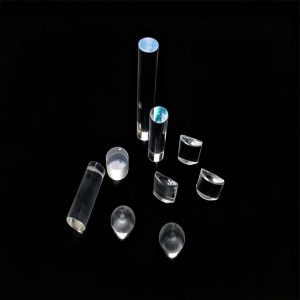

A cylindrical lens is an optical lens designed to focus or expand light in only one direction. Unlike a spherical lens, which affects light along both axes, a cylindrical lens has curvature along a single axis. This unique optical property allows it to convert a point-like beam into a line or reshape an uneven laser beam.
How Does a Cylindrical Lens Work?
The curved surface of a cylindrical lens changes the direction of incoming light along one axis while leaving the perpendicular axis largely unaffected. Depending on its optical design, the lens can either converge light toward a line or diverge it away from a line.

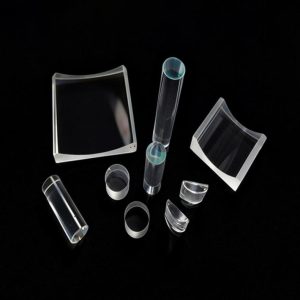

Positive cylindrical lenses, such as plano-convex cylindrical lenses, are commonly used for focusing and line generation. Negative cylindrical lenses, including plano-concave cylindrical lenses, are used for beam expansion and divergence control.
Common Applications of Cylindrical Lenses
Cylindrical lenses are widely used in laser optics, machine vision, optical inspection, barcode scanning, laser measurement, and beam shaping systems. They are particularly useful when precise control of a beam in one dimension is required.
The choice of optical lens material, focal length, diameter, coating, and surface quality depends on the wavelength and application. Common materials include BK7 optical glass, fused silica, and other optical glasses selected according to the required transmission and optical performance.
Choosing the Right Cylindrical Lens
When selecting a cylindrical lens, key specifications include focal length, lens dimensions, optical material, wavelength range, surface quality, and anti-reflection coating. For demanding optical systems, custom cylindrical lenses can also be manufactured according to specific design and performance requirements.
With the right combination of optical material and geometry, cylindrical lenses provide precise one-dimensional control of light and are an important component in many modern optical systems and laser applications.
Custom Cylindrical Lenses from ElyonOptics
ElyonOptics is a manufacturer and supplier of cylindrical lenses and custom optical components, providing cylindrical optical lenses for laser systems, machine vision, optical inspection, and other precision optical applications. We can supply cylindrical lenses in different optical materials, configurations, dimensions, coatings, and specifications according to customer requirements.
Whether you need a standard plano-convex cylindrical lens, plano-concave cylindrical lens, or a custom cylindrical lens, ElyonOptics can provide optical solutions designed for your specific application.
